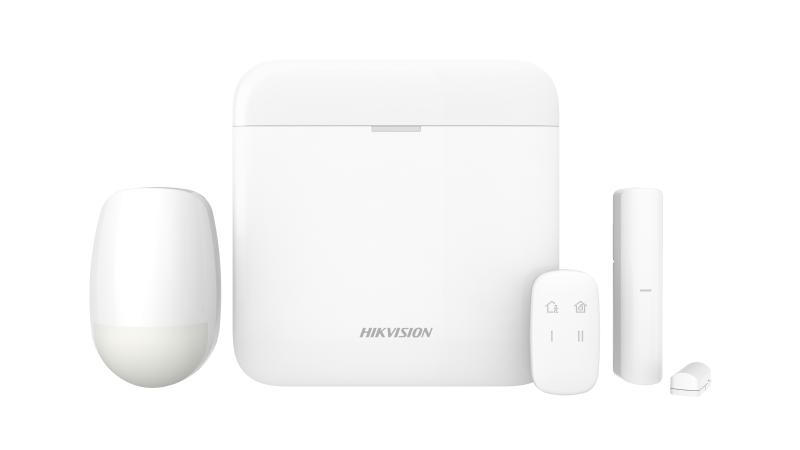

DS-PWA96-M-WE

DS-PWA96-M-WE is the 868 MHz AX PRO wireless alarm-panel reference in the cited 2024 datasheet. Its capacity is up to 96 wireless zones/outputs with PIRCAMs inside that allocation, not additional to it. Confirm the RF version, local regulatory/carrier suitability, accessory mix and power/backup requirements before choosing quantity.

Hikvision · Full reference: DS-PWA96-M-WE

Choose quantity

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Wireless capacity and users

Device class: AX PRO (868MHz)
RF frequency: 868 MHz reference for the WE version; local radio/regulatory approval and compatible devices must be confirmed.
Wireless protocols: Tri-X / Cam-X are listed; use exact compatible devices and firmware.
Wireless communication security: Two-way communication with AES-128 and frequency hopping is described; no end-to-end internet-security certification is inferred.
Network paths: TCP/IP, Wi-Fi and onboard 3/4G are listed; SIM service, local carrier support and network configuration must be checked.
SIM arrangement: Dual SIM slots are listed; no simultaneous dual-data session or automatic carrier availability is guaranteed.
Wireless-zone allocation: Up to 96 wireless zones/outputs including up to 48 PIRCAMs; not 96 plus 48 or a 144-device PIRCAM allocation.
Wireless keyfobs: Up to 48 keyfobs in the cited allocation.
Wireless repeaters: Up to 4 repeaters in the cited allocation; range still depends on devices and the site.
Wireless sounders: Up to 6 sounders: 3 internal and 3 external, not 6 of each.
Keypads and tag readers: Up to 8 combined keypads/tag readers; not 8 plus 8 or 16 separate devices.
Credential tags: Up to 48 tags in the cited table; this is not a count of tag readers.
Multi Transmitters: Up to 6 Multi Transmitters are listed; confirm compatible modules and zone allocation.
User roles: Up to 48 network users: 1 installer, 1 administrator and 46 normal users; not 48 normal users plus administrators.
Areas: 32 areas are listed; areas are not additional wireless zones.

Operation, power and environment

Event-log capacity: 5000 stored log entries are listed; retention/export policy and configuration need checking.
Arming modes: Away and Stay arming modes are listed; the configured protection scheme must match the site.
Scheduled arming: Automatic arm/disarm timers are supported in the document; no timers have been configured by this website.
Forced-arming reference: Arming with open zones is listed as a capability; its safety and access policy require deliberate configuration, not automatic enabling.
Maintenance web server: Offline web-server maintenance/configuration is listed; this is not a publicly connected ISD web server.
Programming tools: Hik-Connect, Hik-ProConnect, Web Portal, iVMS-4200 and Convergence Cloud are listed; compatible versions, service availability and role permissions must be confirmed.
Voice and loudspeaker: Voice prompts and a built-in loudspeaker are listed; no two-way intercom function is inferred.
Built-in tag reader: A built-in tag reader is listed; verify compatible credentials and configured permissions.
Serial output reference: RS232 output support is listed; pinout, signal levels and external-system compatibility are not established here.
Backup-battery type: Built-in lithium backup-battery reference; capacity and the actual battery revision require separate confirmation.
Backup-time reference: Up to 12 hours at normal temperature in the cited document; low temperature can reduce runtime substantially. This is not an actual-system runtime guarantee.
Operating and charging limits: -10 to +55 °C operation in the cited document. The battery cannot be charged below 10 °C; keep the adapter connected as instructed.
Power arrangement: Built-in power-supply reference; the document does not give a complete mains-input or adapter electrical rating here.
Status indicators: Arm/Disarm, Alarm, Tamper, Fault, Cloud and Power LED states are listed; an indicator is not proof that an external alarm message was delivered.
Manufacturer dimensions: 170.0 (W) x 170.0 (H) x 38.6 (D) mm; allow separate installation and cable clearances.
Housing reference: White plastic enclosure in the cited datasheet; no IP/IK or outdoor rating is inferred.

Reporting and video capabilities

ARC protocol reference: SIA DC09 (SIA level 2 / Contact ID), ISUP and ISAPI (SDK), with Hik-IP Receiver / Receiver Pro are listed; not a connected or commissioned ISD monitoring service.
Video-verification reference: Video verification and remote control are described; cameras, compatible configuration, permissions and network/service availability need checking.
Alarm-notification reference: The document describes alarm notifications by messages or phone calls, subject to configuration and service; not a website WhatsApp reply, saved Ticket or verified delivery.
Video-access reference: Live video via Hik-Connect and alarm clips by email/app are listed; compatible cameras, accounts, permissions and service configuration are still required.

Selection notes

These references describe the exact DS-PWA96-M-WE in the cited 2024 datasheet, not a different RF version or proof of the supplied revision, carrier service or live integration.
Confirm local radio/regulatory suitability, carrier service and exact accessory RF versions before supply. This WE 868 MHz reference is not an approval to substitute WB 433 MHz or a (B) revision.
The battery cannot charge below 10 °C in this reference. Normal-temperature backup time is not an installed-system guarantee.
Messages, calls, apps, SDK/ARC protocols and device capabilities do not mean ISD Ticket, WhatsApp or monitoring services are connected.
Manufacturer references do not confirm ISD stock, price, delivery, included equipment, local warranty or publication approval.
